1206-2402-00-00

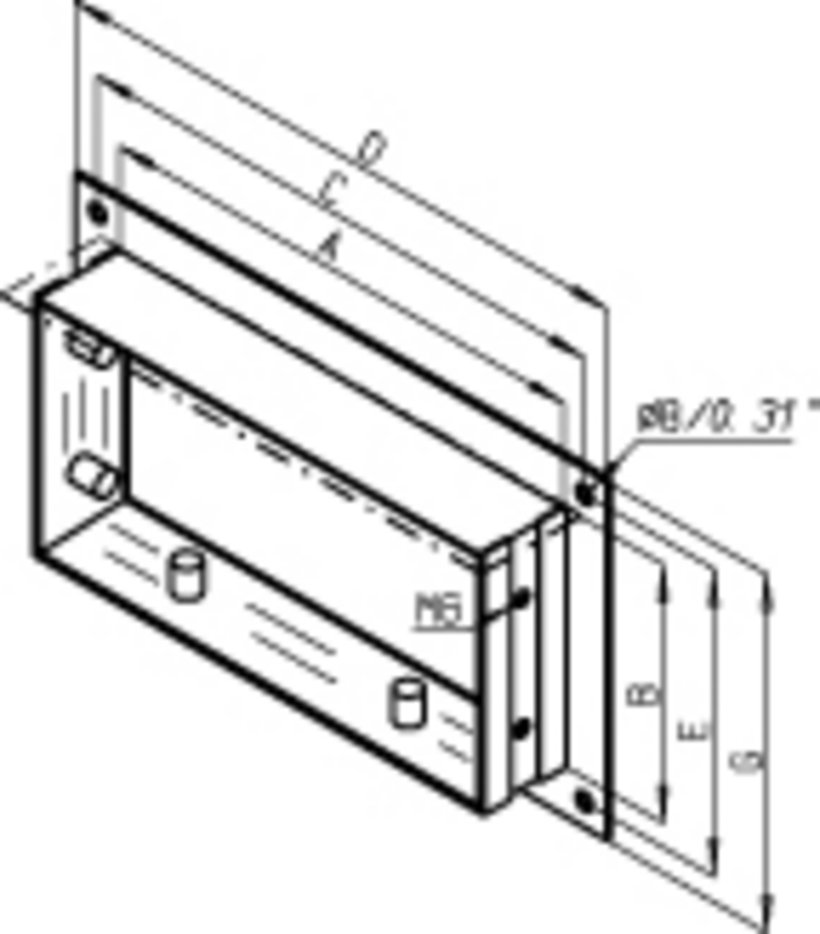

End flange
- Protection class IP54
- very robust
Product description
For mounting ducts to housings, cabinets, machinery etc.
End flange consisting of a frame with pressed nuts M6 and loosely enclosed gaskets.
The end flange can also be used as a base.
Technical data
-
Article number: 1206-2402-00-00
-
Variant: without flange
-
Material: Sheet steel
Notice
- Order no. 1206-2407-00-00 additional hole Ø 8 mm in the centre of dimension C.
- Order no. 1206-2408-00-00 additional hole Ø 8 mm in the centre of dimensions E/C.
- 1 end flange with press nuts M6
- with gaskets
