Product description

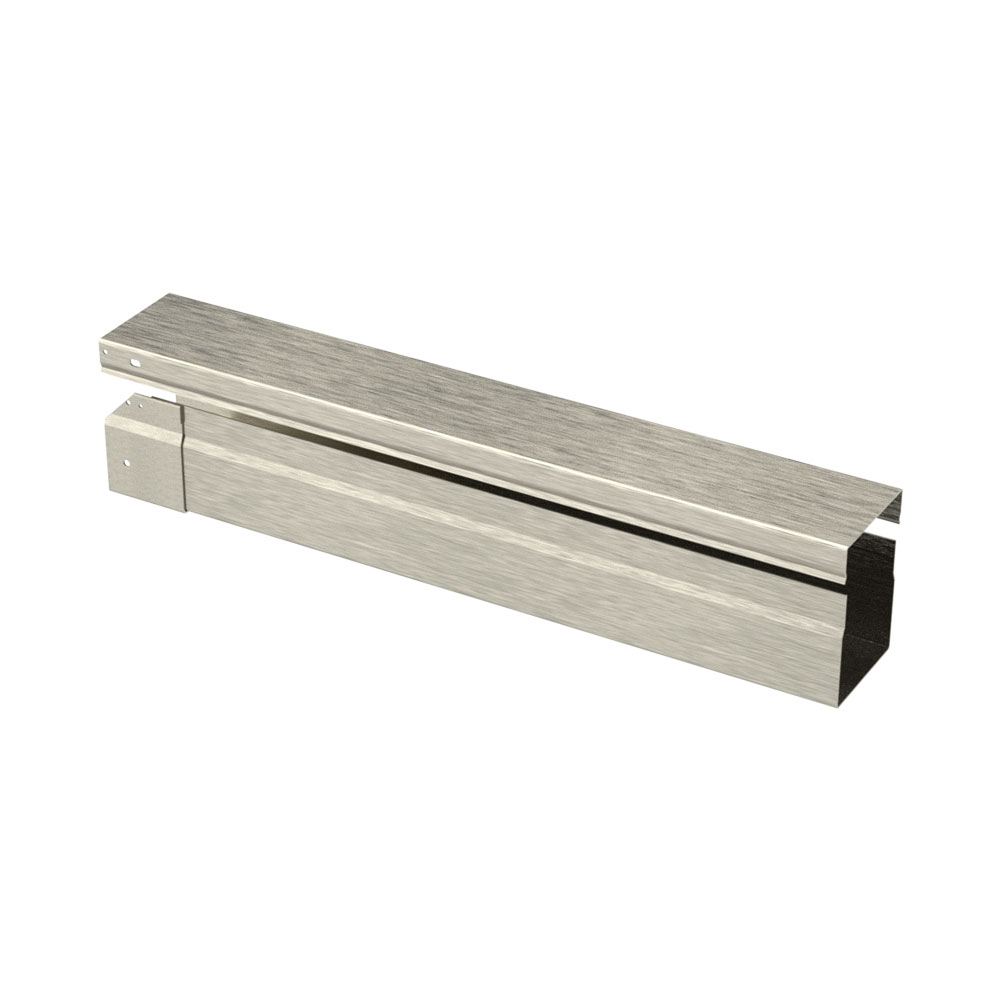

For length compensations of 75 mm / 2.95” up to 450 mm / 17.71“.
The snap-on cable duct covers require minimum space to open.
If necessary, they can be secured with screws after installation.
The chamfered cable duct ends permit a continuous open insertion.
The cable duct ends are provided with pre-drilled holes for the attachment screws of U-brackets or connection brackets.
Technical Data
-
Order No.: 1207-1010-03-00
-
Type: Cable duct system type 1207
-
Cross-section: 100 x 100 mm/3,94 x 3,94"
-
Dimension: Length: 75 mm - 450 mm
-
Protection type: IP2X
-
Material: Stainless steel no. 1.4301
-
Surface: Externally brushed
-
Sheet thickness: 1,5 mm/0,0,6"
-
Weight: 3.4 kg
Notice
- The telescopic section can only be used with a cable duct.
- The telescopic section must be drilled and screwed together on one side at the final assembly.
- U-brackets or connection brackets are required on one side only for assembly.
- The various connection options are shown in the catalog. See “Cable Duct Catalog" in the Download Center.
- Equipotential bonding must be provided by the customer. See “Protective conductor structure - xxx” in the Download Center.
- 1 telescopic section with cover
3080-7036-10-10
Cable for Protective Ground Connection
Conductor cross-sections
2,5 mm2
Dimensions
Length: 115 mm/4,53"
Drilling diameter d
Ø=4,3 mm
Material
H07V-K
1207-9001-05-08
Screw with Nut
Thread
M5
Length of thread
8 mm
Material
Stainless steel
Surface
unfinished
1207-9004-05-08
Screw with Washer
Thread
M5
Length of thread
8 mm
Material
Stainless steel
Surface
untreated
1207-0310-13-00
Elbow
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Angle
45°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-0310-90-00
Elbow
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
1207-0410-00-00
T-Section
Type
Cable duct system type 1207
Cross section
100 x 100 mm/3,94 x 3,94"
Angle
90°
Routing direction
variable
Material
Stainless steel no. 1.4301
