Partition panel for straight duct sections

1204-0715-05-00

Partition panel for straight duct sections

Product description

With partition panels the ducts can be divided into chambers. Control lines may be separated from supply lines; or electric lines can be routed together with hydraulic or pneumatic cables in one duct.

Technical data

  • Article number: 1204-0715-05-00
  • type: Cable duct system type 1204
  • PRODUKTGRUPPENNAMEEBENE4: Accessories Type 1204/1207
  • Cross section: 150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
  • Length: 498 mm

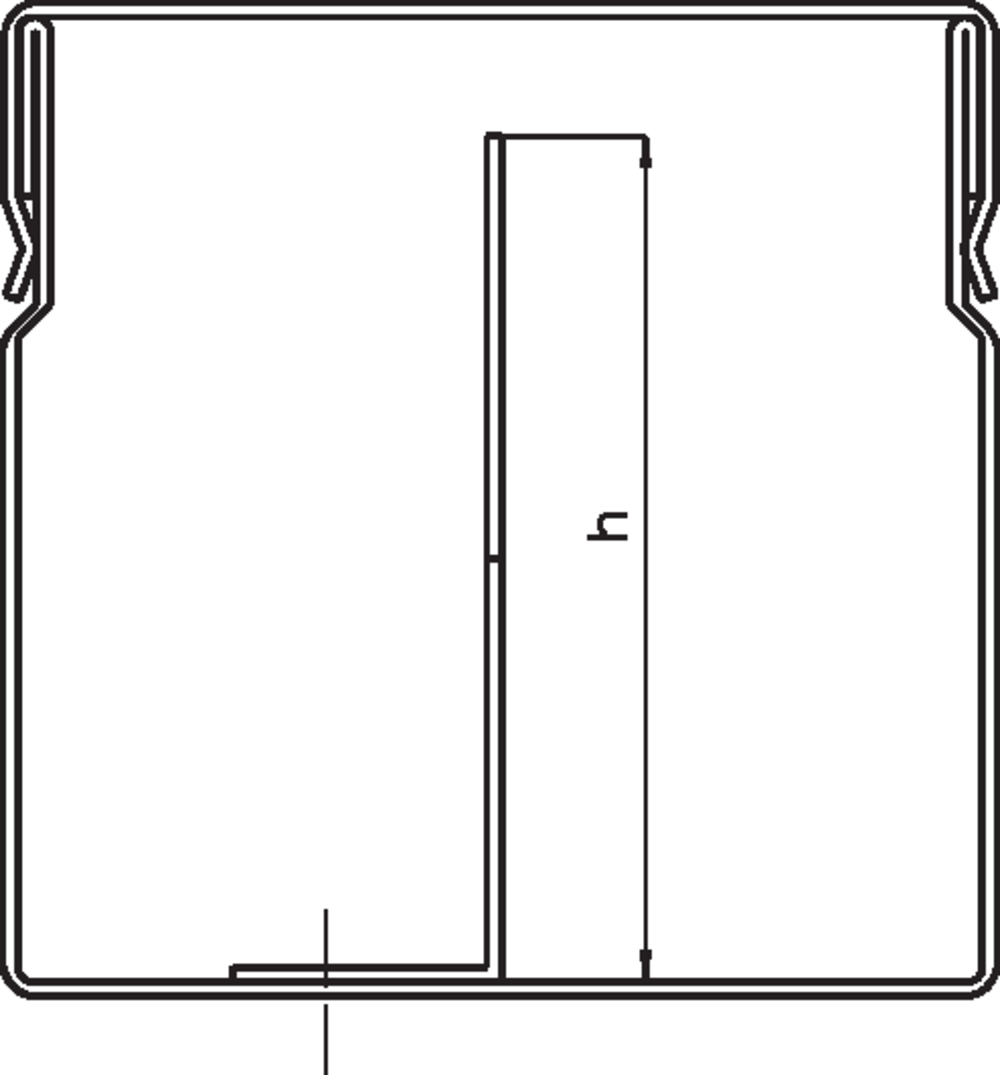

  • Dimension height (h): 140 mm
  • Material: Sheet steel
  • Surface: electrolytically-galvanised
  • Sheet thickness: 1,5 mm/0,0,6"
  • Weight: 1.06 kg

Notice

  • The partition panels are screwed to the connecting parts at the ends.
  • Idealerweise Verbindungs-U „mit Bohrung“ verwenden.
  • 1 partition panel
Cable Duct
1204-0015-05-00
Cable Duct
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Length
500 mm
Material
Sheet steel
Cable Duct
1204-0015-10-00
Cable Duct
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Length
1000 mm
Material
Sheet steel
Cable Duct
1204-0015-20-00
Cable Duct
Type
Cable duct system type 1204
Cross section
150 x 150 mm/5,91 x 5,91"
Length
2000 mm
Material
Sheet steel
Cable Duct
1204-0030-05-00
Cable Duct
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Length
500 mm
Material
Sheet steel
Cable Duct
1204-0030-10-00
Cable Duct
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Length
1000 mm
Material
Sheet steel
Cable Duct
1204-0030-20-00
Cable Duct
Type
Cable duct system type 1204
Cross section
11,81 x 5,91 inch
Length
2000 mm
Material
Sheet steel
CAD data and other illustrations:

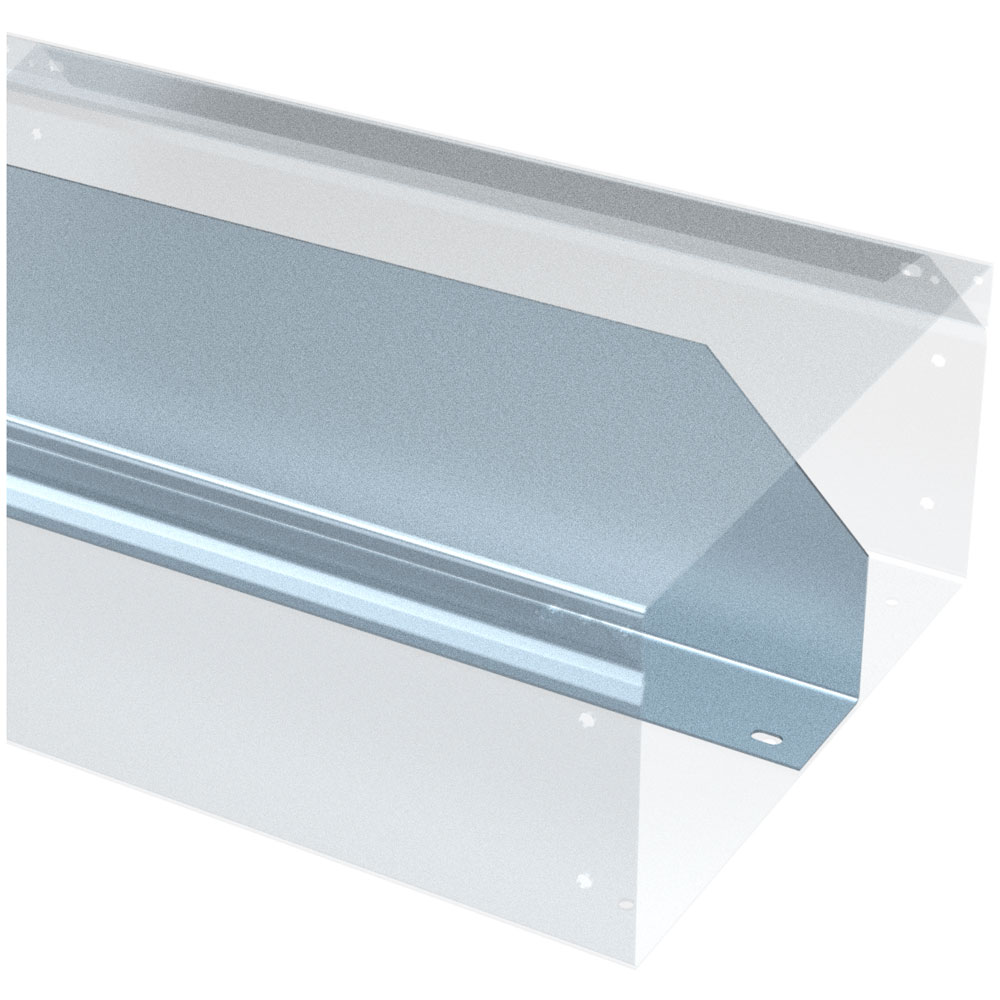

Partition panel for straight duct sections
Partition panel for straight duct sections
With partition panels the ducts can be divided into chambers. Control lines may be separated from supply lines; or electric lines can be routed together with hydraulic or pneumatic cables in one duct.

Remember
Cable duct system type 1204
150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
498 mm
Sheet steel
Cable duct system type 1204
150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
998 mm
Sheet steel
Cable duct system type 1204
150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
1998 mm
Sheet steel
Cable duct system type 1207
150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
498 mm
Stainless steel no. 1.4301
Cable duct system type 1207
150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
998 mm
Stainless steel no. 1.4301
Cable duct system type 1207
150 x 150 mm/5,91 x 5,91" + 300 x 150 mm/11,81 x 5,91"
1998 mm
Stainless steel no. 1.4301

Contact for products
Find your personal point of contact
We are happy to help you.

The best switch cabinets and casings are not produced on an assembly line, but rather designed in close cooperation with our customers. Are you ready to begin? Then contact your personal häwa consultant.

Choose your advisor now
