0396-7002-00-43

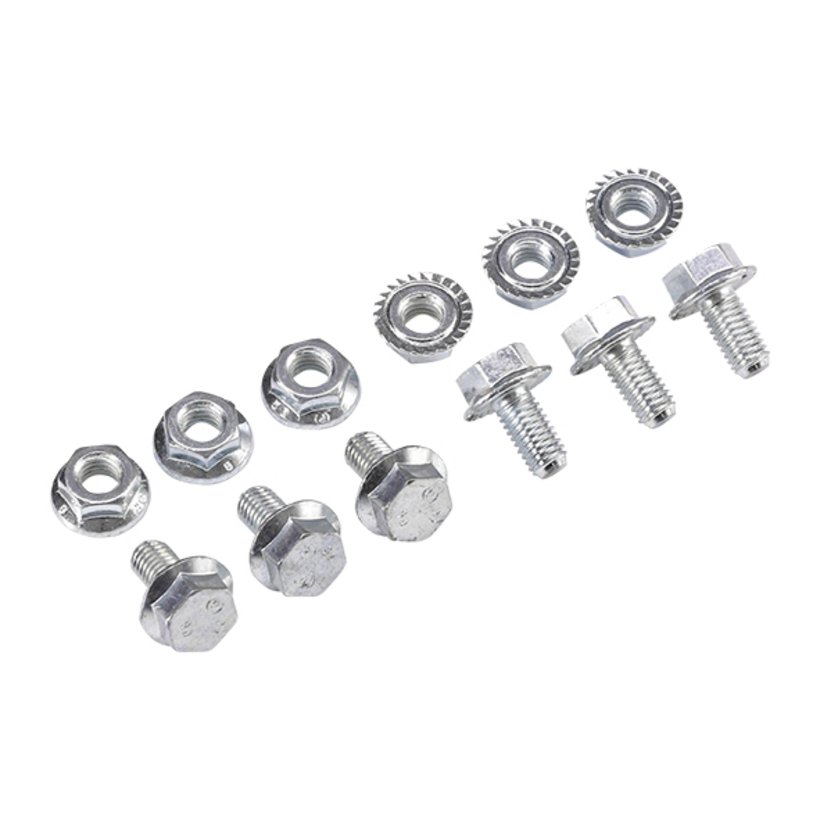

Standard connector set
Product description
For modular installation of cabinets
Technical Data
-
PRODUCT NUMBER: 0396-7002-00-43
-
Type: Sheet steel
-
Weight: 0.119 kg
Notice
- The rubber gasket type 3080-0102-18-00 must be ordered separately. General note: Begin modular assembly with the mounting plate or mounting plate intermediate piece in the rearmost position.
- Use if partition panels are fitted between modular cabinets.
- Suitable for transporting heavy-duty cabinets.
- 6 self-locking screws with serrated bearing surface and nuts
