0396-6866-55-27

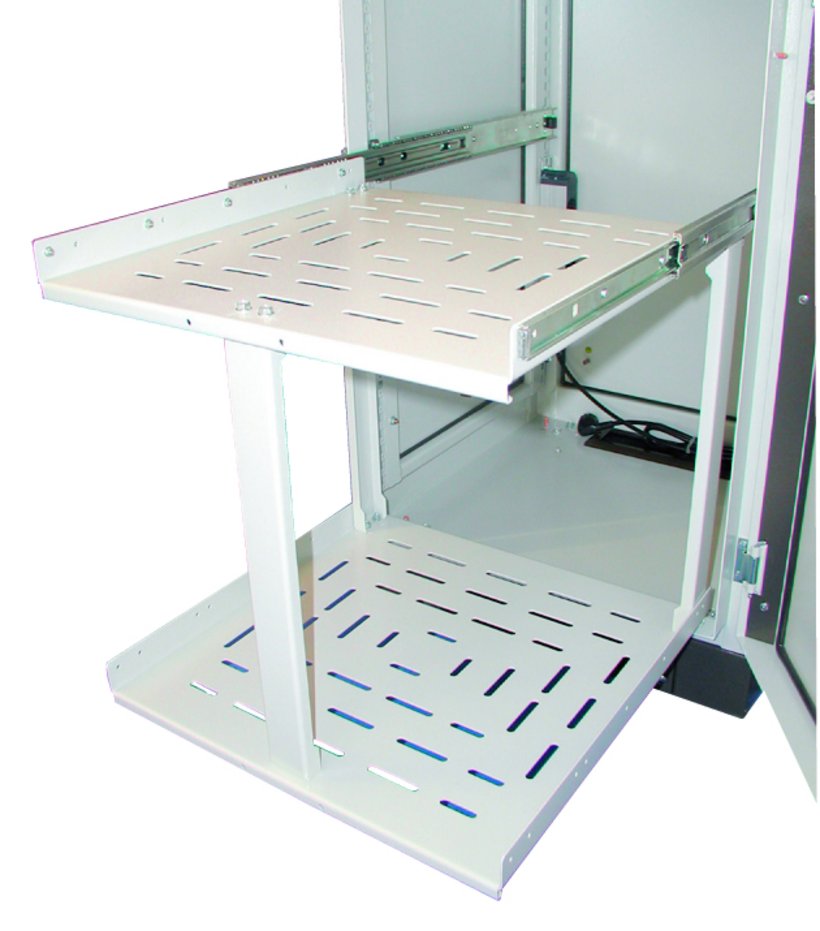

Extendable equipment drawer, two levels
- Optimum utilization of 2096 PC cabinet height
- With locking system to prevent extension in closed position
- Over-extension
Product description
Can be used in häwa 2096 PC cabinets, modular and free-standing cabinets.
For PC, printers, etc.
max. dimensions W x H x D:
- 2 pcs. PC towers: 200 x 450 x 460 mm / 7.87 x 17.71 x 18.11“ plus plug
- 1 pc. printer: 390 x 350 x 460 mm / 15.35 x 13.77 x 18.11“ plus plug
Technical Data
-
Order No.: 0396-6866-55-27
-
Dimension: Suitabel for width : 600 mm Suitable for depth : 625 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel
-
Weight: 14.9 kg
-
Construction height: 534 mm/21,02"
-
Footprint: Width: 488 mm x Depth: 500 mm
-
Load capacity: 60 kg
-
Extension length: 530 mm
-
Sheet thickness: 2 mm/0,08"
Notice
- See operation manual type 2096-0000-01-77 on page 6, 7 for the mounting instructions.
- For the mounting in free-standing cabinets type H390, 2 sets each of vertical mounting rails 0391-90xx-00-03 are required.
- 2 pcs. extendable shelves with support frame,
- Telescopic rails and mounting hardware
0390-6018-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-6020-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6018-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6020-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6022-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
Assembly instructions:
