0396-0018-41-52

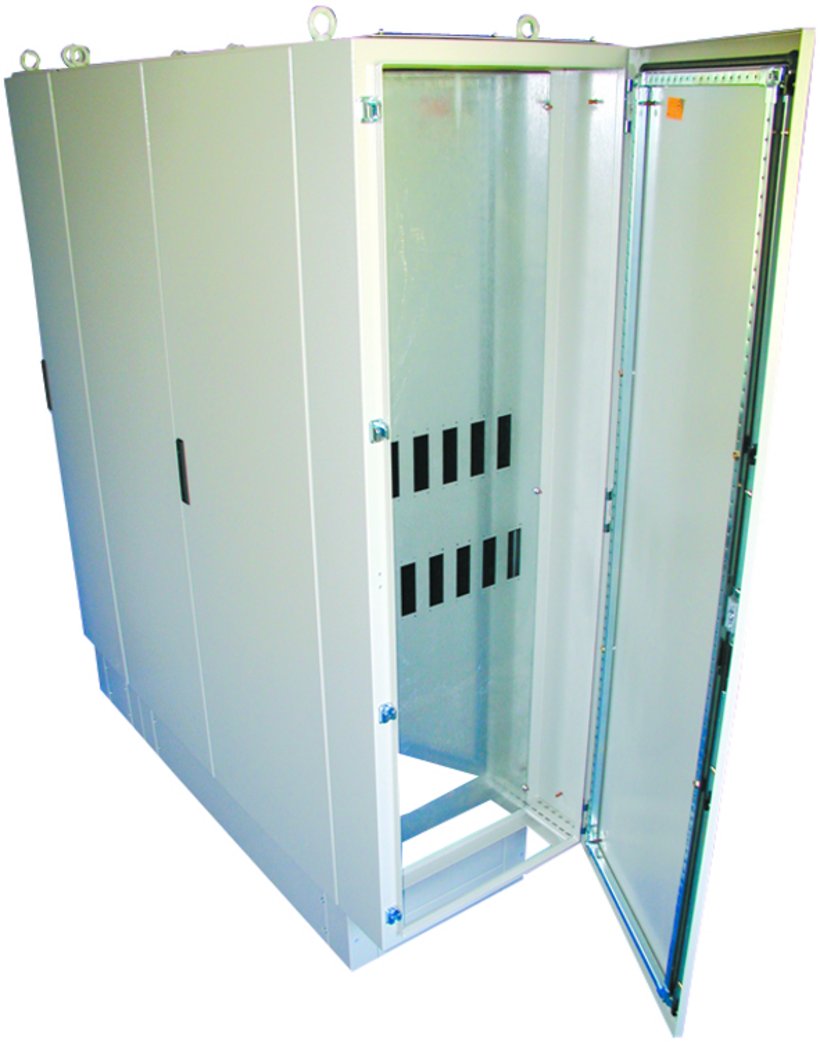

Panels with plug cut-outs
- For covering cabinet 0399
- For utilization with connectors
Product description
Protective ground connection according to DIN EN 61439-1
For covering cabinet type 0399
Attachment: By means of 6 self-locking nuts
Seal: Continuous clip-on rubber, corresponding to protection class IP 559
Ground connection: Is provided
Technical data
-
Article number: 0396-0018-41-52
-
Dimensions: Height : 1686 mm Depth : 295 mm suitable for height : 1800 mm suitable for depth : 400 mm
-
Surface: Galvanized
-
Material: Sheet steel
-
Dimension perforation (a): 278 mm
-
Sheet thickness: 2 mm
Notice
- Panels with plug cut-outs suitable for cabinet type H395. Versions in stainless steel and further options are available upon request. Modifications of the cut-out quantity and type to customer specifications also available upon request.
- Panel with plug cut-outs with mounted clip-on rubber 3080-0069-22-00 and 6 self-locking nuts M6
0395-1018-40-07
Modular cabinets Sheet steel H395, single door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1018-40-17
Modular cabinets Sheet steel H395, single door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-1118-40-07
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-1118-40-17
Modular cabinets Sheet steel H395, double door
Width
1000 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-1218-40-07
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-1218-40-17
Modular cabinets Sheet steel H395, double door
Width
1200 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6018-40-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6018-40-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8018-40-07
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1800 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-8018-40-17
Modular cabinets Sheet steel H395, single door
Width
800 mm
Height
1800 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
