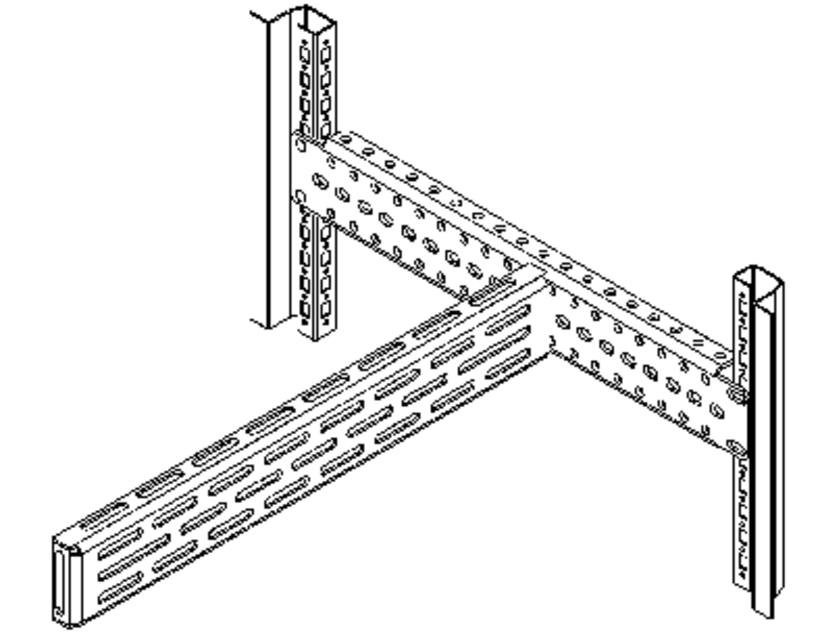

Mounting rail (Q1)

0396-0019-60-00

Mounting rail (Q1)

Product description

For installation between support rails (T)

Technical Data

  • Order No.: 0396-0019-60-00
  • Dimension: Suitabel for width : 600 mm
  • Surface: Galvanized
  • Material: Sheet steel
  • Size: Length : 542 mm
  • Weight: 1.2 kg
  • Sheet thickness: 3 mm/0,12"

Notice

  • 1 mounting rail without mounting hardware
