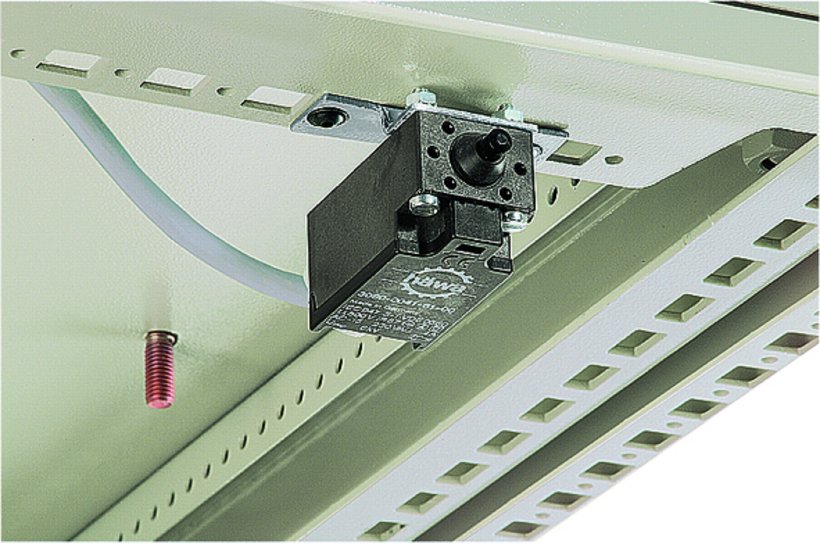

Door Switch for Cabinets H3X0/H3X5

3080-7041-61-95

Door Switch for Cabinets H3X0/H3X5

Product description

The door switch can be mounted at any position of the continuous door frame.

Technical Data

  • Order No.: 3080-7041-61-95
  • Protection class: II (double insulation)
  • Rated operating voltage: Ue 240V
  • Rated insulation voltage: Ui 250 V AC
  • EC conformity: to directive 2006/95/EG
  • Contact: 1 Normally open, 1 normally closed
  • Conventional thermal current: lthe 10 A
  • Conductor cross-sections: single-wire 0.5 to 1.5 mm², stranded wire with wire end ferrule 0.5 to 1.5 mm²
  • Attachment: 2 x M4
  • Utilization category: AC-15, Ue/le 240V/3A
  • Mounting type: 4 screw connection (M3.5)
  • Mechanical service life: 10000000 cycles
  • Ambient temperature: from: -30 °C/-86 °F to +80 °C/+176 °F
  • Operating temperature: from: -30 °C/-86 °F to: +75 °C/+167 °F
  • Fitting position: variable
  • Protection type: IP65
  • Weight: 0.06 kg
  • Voltage type: AC
  • 1 door switch with mounting hardware
