2010-7261-44-27

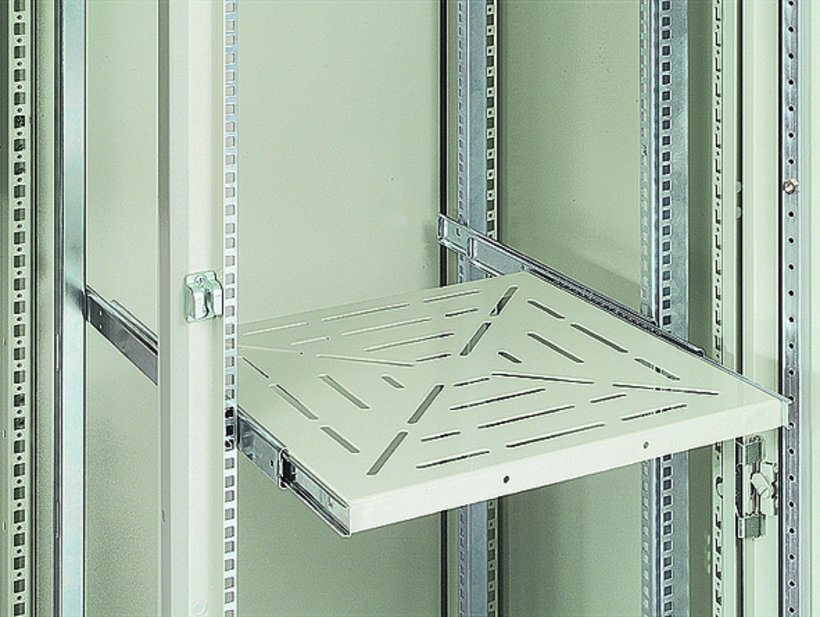

19"-Extendable intermediate shelves
- For mounting to 19"-rails
Product description
Labor saving quick mounting system employs bajonet tabs on intermediate shelves and telescopic rails. Slots in the shelves aid air movement and help to prevent heat build-up.
Technical Data
-
Order No.: 2010-7261-44-27
-
Dimension: Suitabel for width : 600 mm Suitable for depth : 600 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Construction height: 38 mm/1,50"
-
Material: Sheet steel
-

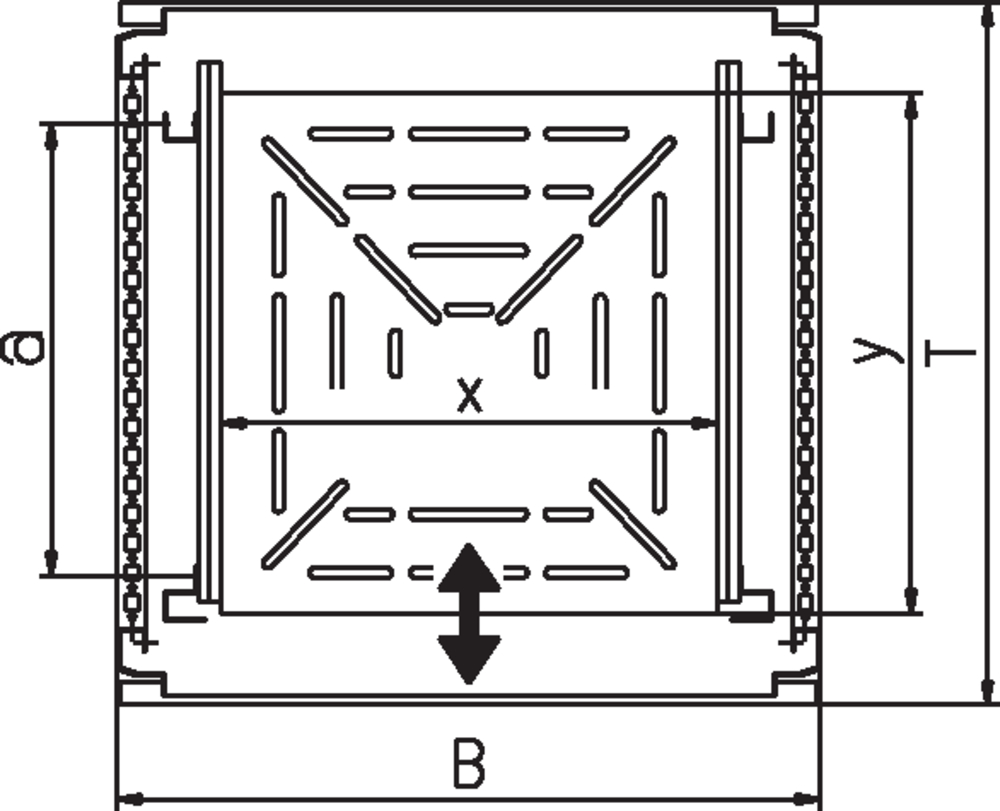

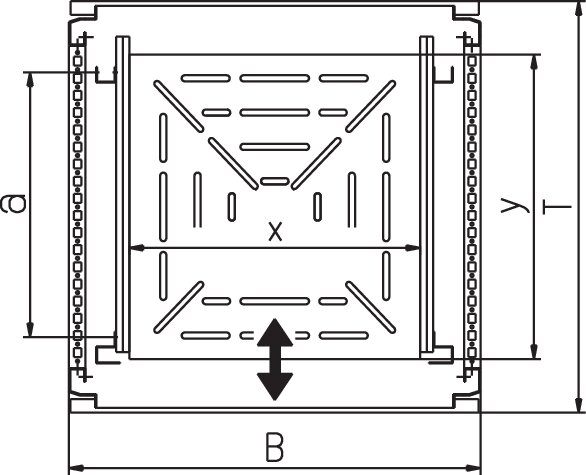

Hole size A: 386 mm
-
Weight: 4 kg
-
Footprint: X: 424 inch x Y: 444 inch
-
Extension length: 480 mm
-
Load capacity: 50 kg
-
Sheet thickness: 2 mm/0,08"
- Intermediate shelf with telescopic rails.
2070-9102-36-02
Clip-nuts
Thread
M6
Suitable for sheet metal thickness
1,7 - 2,7 mm
For cut-out size
9,5x9,5 mm/0,37x0,37"
Variante
without grounding pin
0390-6018-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-6018-60-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-6020-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-6020-60-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
