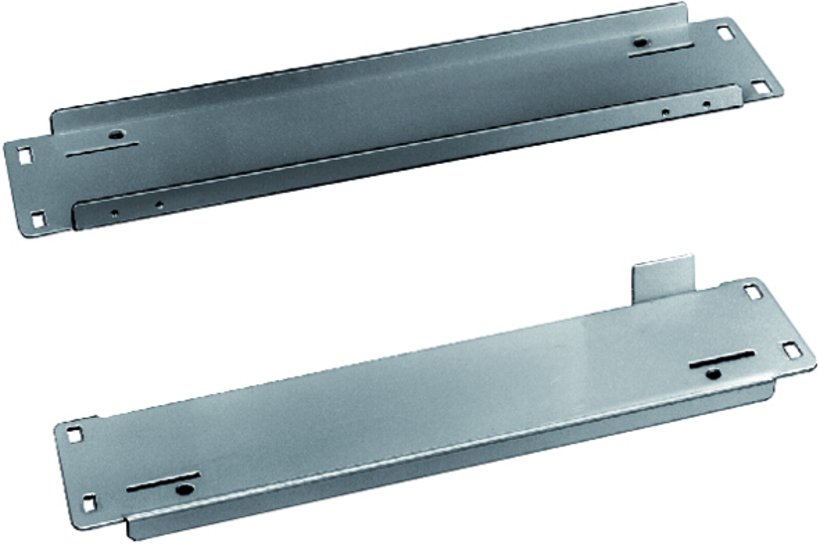

Product description
Protective ground connection according to DIN EN 61439-1.
Swing frames can be mounted on the right or left.
Opening angle 90°.
Technical Data
-
Order No.: 0318-7012-90-07
-
Dimension: Suitabel for width : 1200 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel
-
Sheet thickness: 3 mm
Notice
- It is also possible to mount two 600 mm / 23.62" wide swing frames on the frame of 1200 mm / 47.24" wide cabinets (both installed on the outside).
- 1 set = 2 attachment bars with mounting hardware
