0396-7060-60-77

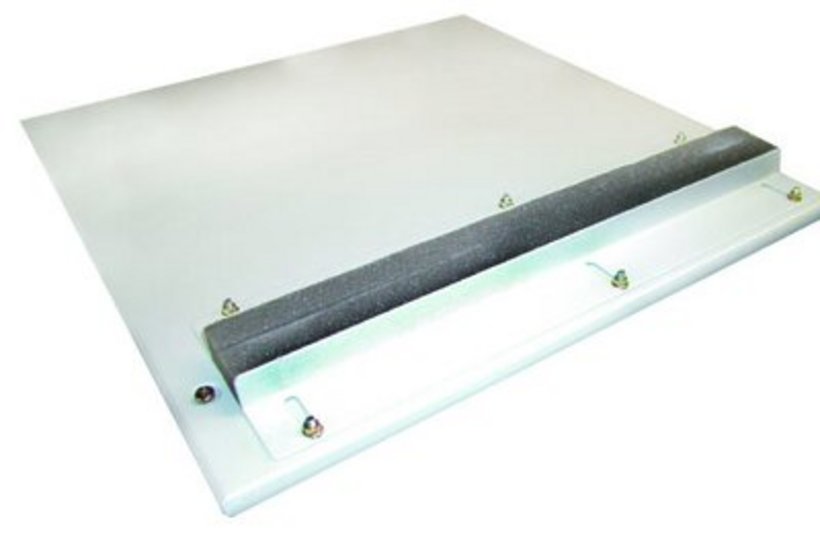

Top panel with rubber clamping
- Flexible cable routing for H395 cabinets
Product description
Top panel with movable cable entry plate with rubber clamping (good hydrolysis resistance)
Max. cut-out 460x50 mm, suitable for shockproof plugs etc.
Protective ground protection according to DIN EN 61439-1, 1 stud M8x20
with seamlessly foamed seal
Laterally flanged edges
Secured with Torx screws
Suitable for cabinets H395
Technical data
-
Article number: 0396-7060-60-77
-
Dimensions: suitable for width : 600 mm suitable for depth : 600 mm
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Top plate: 1.5 mm (16 ga) sheet steelBracket: 1.5 mm (16 ga) sheet steelRubber clamping: Largely open-cell polyether-based polyurethane foam
-
Temperature resistance: from: -40 °C/-104 °F to: +90 °C/+194 °F
-
Insensitive to: fuel vapors and mineral oil splashes
-
Fire behavior: complies with FMVSS 302, DIN 75200
-
Weight: 4 kg
-
Protective conductor connection: according to DIN EN 61439-1
-
Cross section: Rubber clamp 30 x 25 mm
- 1 top panel complete with mounting hardware

0395-6016-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus

0395-6016-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus

0395-6018-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus

0395-6018-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus

0395-6020-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus

0395-6020-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus

0395-6022-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus

0395-6022-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2200 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
