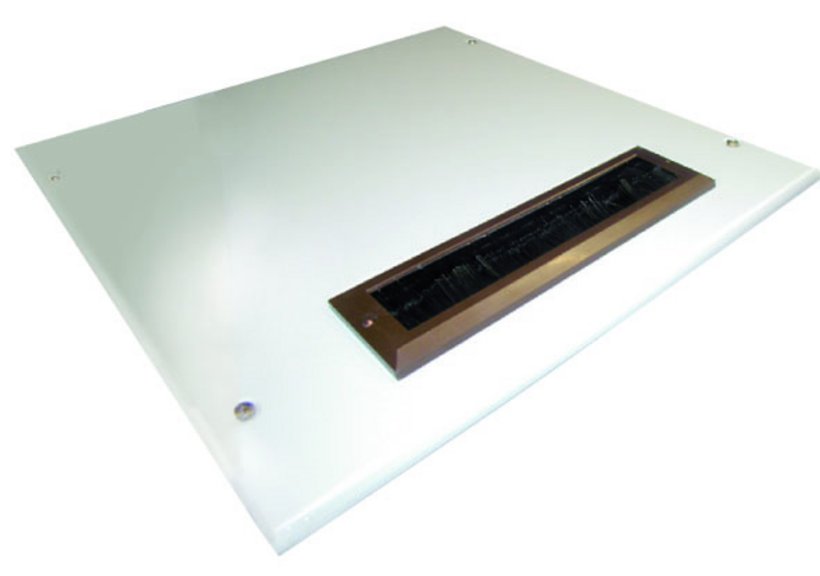

Top panels with brush strip

0396-7060-60-47

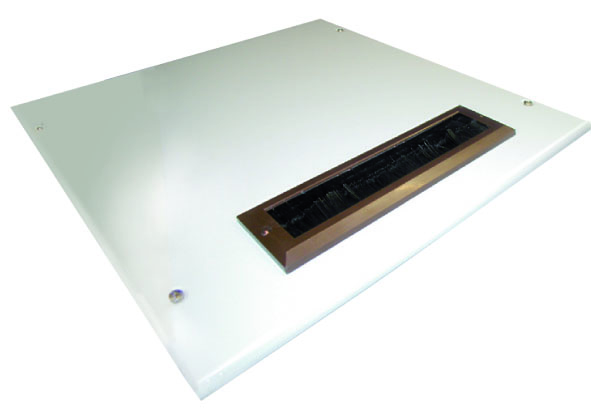

Top panels with brush strip

  • Universal cable entry for H395 cabinets

Product description

The brush strip enables an easy cable passage and protects against ingress of dust

Cut-out 272 x 42 mm, suitable for shockproof plug etc.

Protective ground connection: according to DIN EN 61439-1, 1 bolt M8 x 20

with seamlessly foamed seal

lateral design edge

secured with Torx screws

Technical data

  • Article number: 0396-7060-60-47
  • Dimensions: suitable for width : 600 mm  suitable for depth : 600 mm
  • Surface: Powder coating RAL 7035, texture finish
  • Material: Sheet steel 1,5 mm; 16 ga, brush strip: plastic brown
  • Protective conductor connection: according to DIN EN 61439-1
  • Inlet slot: 270 x 45 mm / 10,63 x 1,89 inch
  • Dimensions: Brush strip: 310 x 84 x 12 mm
  • 1 top panel complete with mounting hardware
Modular cabinets Sheet steel H395, single door
0395-6016-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6016-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6018-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6018-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6020-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6022-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
Modular cabinets Sheet steel H395, single door
0395-6022-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2200 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12
Approval
cULus
Top panels with brush strip
Top panels with brush strip
The brush strip enables an easy cable passage and protects against ingress of dust
Cut-out 272 x 42 mm, suitable for shockproof plug etc.
Protective ground connection: according to DIN EN 61439-1, 1 bolt M8 x 20
with seamlessly foamed seal
lateral design edge
secured with Torx screws

Art No.
Suitable for width
Suitable for depth
Remember
600 mm
600 mm
