0395-6016-00-97

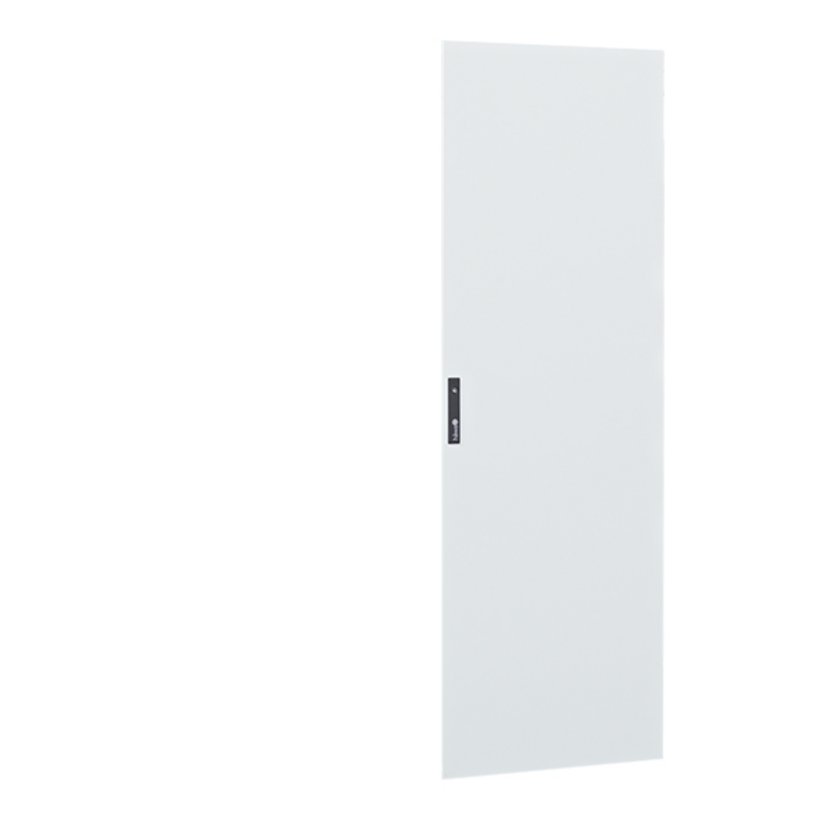

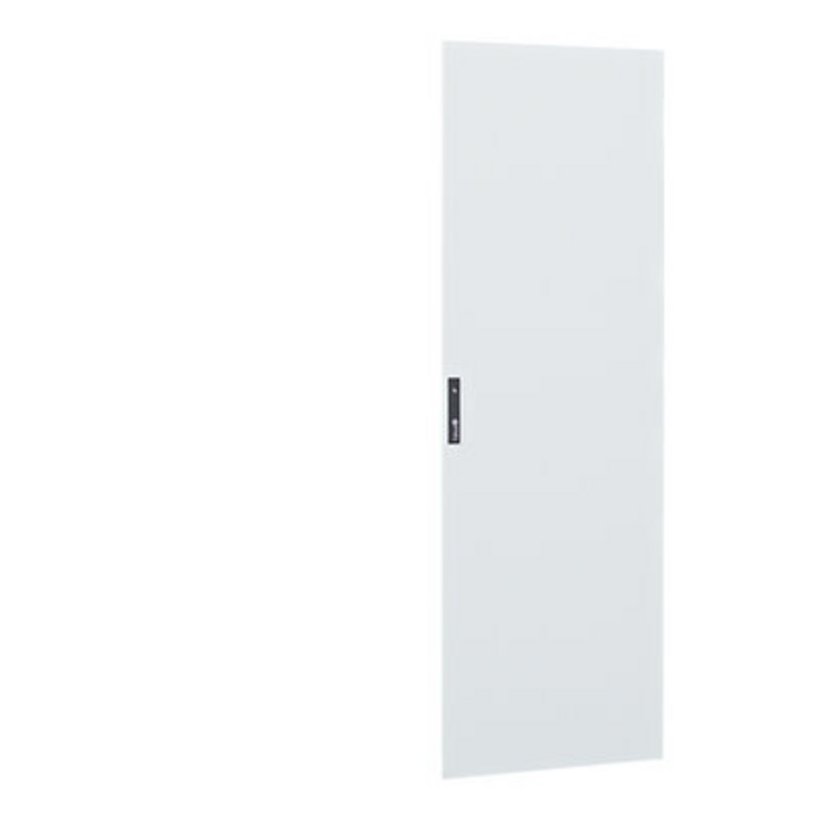

Replacement door for sheet steel cabinets type H390/H395
Product description
Replacement door suitable for cabinets type H390/H395
Grounding to DIN EN 61439-1, 2 grounding bolts M8 x 20 per door
With seamless foamed seal
Concealed hinges, opening angle 120°, exchangeable with 180°, 3 hinges per door
Lock: single doors with bar lock system, two doors: right-hand overlapping door, with bar lock, 3 mm double mandrel
Bolted reinforcement frame of solid square tubes with 4.5 mm attachment holes every 25 mm
Technical Data
-
Order No.: 0395-6016-00-97
-
Protective ground connection: according to DIN EN 61439-1
-
Dimension: Suitabel for width : 600 mm Suitable for height : 1600 mm
-
Type: Single door
-
Surface: Powder coating RAL 7035, texture finish
-
Material: Sheet steel
-
Sheet thickness: 2 mm/0,08"
Notice
- If the rear panel of an H395 cabinet is replaced by a single door, you must additionally order and install a set of double hooks 3080-9208-14-04.
- Doors complete with hinges, mounting hardware and 1 key.
- Single doors and right doors additionally with lock.
- 2 door sets with profile seal and fixing aid.
0390-6016-40-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0390-6016-40-17
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-40-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-40-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
400 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
0395-6016-60-17
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
with mounting plate
Protection type
IP55, IP56 optional
Type 1, 12, 3R optional
Type 1, 12, 3R optional
Approval
cULus
