0396-4566-55-17

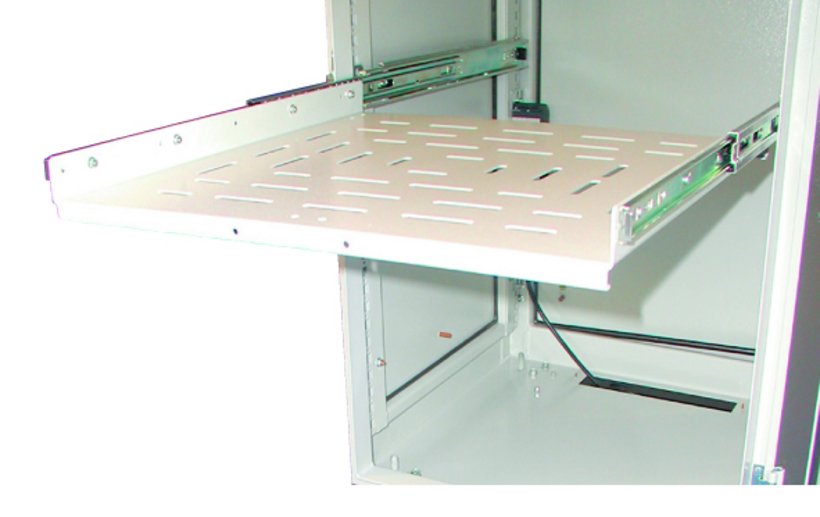

Extendable shelf
- Retainer - in closed position
- Full extraction
Product description
For the use in PC2096 cabinets and suitable for modular/free-standing häwa cabinets.
For mounting on the cabinet frame.
The perforation of the shelves prevents the build-up of heat nests.
With front quick release.
Technical Data
-
PRODUCT NUMBER: 0396-4566-55-17
-
Material: Sheet steel
-
Extension length: 508 mm
-
Construction height: 66 mm
-
Sheet thickness: 2 mm/0,08"
-
Load capacity: 45 kg
-
Suitabel for width: 600 mm
-
Suitable for depth: 625 mm
-
Weight: 7.2 kg
-
Surface: Powder coating RAL 7035, texture finish
-
Footprint: X: 488 inch x Y:500 inch
Notice
- See operation manual type 2096-0000-01-77 on page 4 for the mounting instructions.
- For the mounting in free-standing cabinets type H390, 2 sets each of vertical mounting rails 0391-90xx-00-03 are required.
- Shelf with telescopic rails and mounting hardware.
0390-6018-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0390-6020-60-07
Free-Standing cabinets Sheet steel H390, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6016-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1600 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6018-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
1800 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6020-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2000 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
0395-6022-60-07
Modular cabinets Sheet steel H395, single door
Width
600 mm
Height
2200 mm
Depth
600 mm
Type
without mounting plate
Protection type
IP55
Type 1, 12
Type 1, 12
Approval
cULus
